Digital Flame Photometer SIPL931 manufactured by us boast of top-notch quality. Supreme quality raw materials and properly updated technology is utilized for manufacturing them. Durability, longevity, strength, perfect designs are their highlights. Our top-notch quality experts, R & D team and engineers, are responsible for developing products, with the latest trend in sight.
Technical Specification
| Model | SIPL931 |
| Range | Na: 0-100 ppm, K: 0-100 ppm, Ca: 15-100 ppm (optional), Li: 10-100 ppm (Optional) |
| Sensitivity | Na: 5 ppm, K: 5 ppm, Ca: 10 ppm (Optional), Li: 10 ppm (Optional) |
| Readout | 2.5 Digit Bright Red LED Display |
| Accuracy | +/- 2 % up to 40 ppm +/- 5% above 40 ppm |
| Ignition System | Auto Ignition System |
| Dimension | 385X245X200 mm (LXBXH) |
| Measurement System |
Measures one Element at a time |
| Repeatability | ± 2 Counts |
| Detector | Silicon Photodiode |
| Filters | Narrow Band Interference Glass Filters |
| Nebulizer | Black Bakelite, Axial Flow Type |
| Flame System | LPG and Dry Oil Free Air |
| Warm up Time | Time 10 Minutes |
| Power Supply | 230V, ± 10 % AC, 50 Hz |
| Weight | 7.5 Kg (APPROX) |

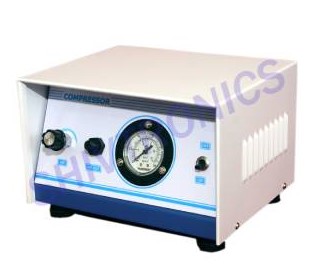

Technical Specifications Compressor SIPL930
| Model | SIPL930 |
| Air Supply | By oil free mini compressor unit with pressure regulator |
| Combustion | Gas LPG controlled by precision regulator |
| Dimension | 260X220X195 mm (LXBXH) |
| Weight | 6.5 KG (Approx.) |
